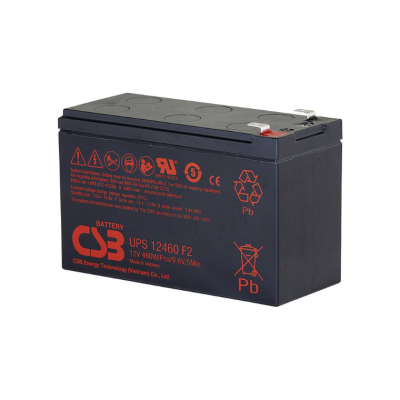

CSB UPS12460
Voltage : 12V
Capacity : 460W
Dimensions : Length (L) 150.9±2.0 mm
Width (W) 64.8±1.0 mm
รายละเอียดสินค้า
Valve Regulated Lead Acid Battery
- Maintenance-Free Sealed Acid Battery.
- Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Specification
| Nominal Voltage | 12V (6 cells per unit) |
| Nominal Capacity | 460W @5min-rate to 9.60V per PCS @25°C (77°F) |
| Weight | Approx. 2.50 Kg (5.51 Ibs) |
| Maximum Discharge Current | 130A (5sec) |
| Internal Resistance | Approx. 16.60 mΩ |
| Short Circuit Current | 450A |
| Maximum Charge Current | 3.8A |
| Terminal types | F2 terminal - Faston Tab 187/250 |
| Terminal breaking Torque | |
| Container Material | ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
Dimensions
| Length (L) | 150.9±2.0 mm | 5.94±0.08 inch |
| Width (W) | 64.8±1.0 mm | 2.55±0.04 inch |
| Container Height (h) | 94.3±1.0 mm | 3.71±0.04 inch |
| Overall Height (H) | 98.6±1.0 mm | 3.88±0.04 inch |
