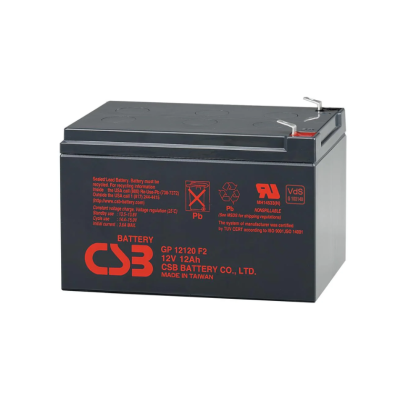

CSB GP12120
Voltage : 12V
Capacity : 12Ah
Dimensions : Length (L) 151.0±2.0 mm
Width (W) 98.0±1.0 mm
รายละเอียดสินค้า
Valve Regulated Lead Acid Battery
- Maintenance-Free Sealed Acid Battery.
- Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Specification
| Nominal Voltage | 12V (6 cells per unit) |
| Nominal Capacity | 12Ah @20hr-rate to 1.75V per PCS @25°C (77°F) |
| Weight | Approx. 3.67 Kg (8.09 Ibs) |
| Maximum Discharge Current | 150/180A (5sec) |
| Internal Resistance | Approx. 16.7 mΩ |
| Short Circuit Current | 378A |
| Maximum Charge Current | 3.60A |
| Terminal types | F1/F2 terminal - Faston Tab 187/250 |
| Terminal breaking Torque | |
| Container Material | ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
Dimensions
| Length (L) | 151.0±2.0 mm | 5.94±0.08 inch |
| Width (W) | 98.0±1.0 mm | 3.86±0.04 inch |
| Container Height (h) | 94.1±1.0 mm | 3.70±0.04 inch |
| Overall Height (H) | 100.3±1.5 mm | 3.95±0.06 inch |
