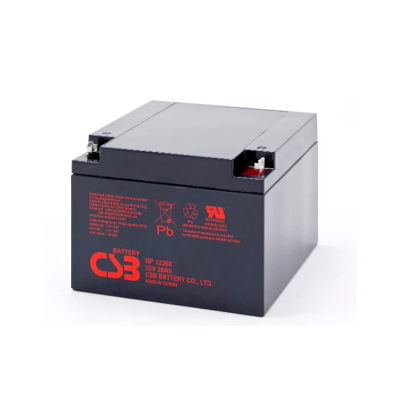

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 26 Ah @20hr-rate to 1.75V per cell @25°C (77°F) Approx. 8.45 Kg (18.62 Ibs) 350A (5sec) Approx. 9.9 mΩ 635A 7.8A B1/BB3/B38 terminal to accept M5 bolt 59 Kgf·cm / 51 lbf·in / 5.73 N·m ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 166.0±2.0 mm 175.0±2.0 mm 125.0±1.5 mm 125.0±1.5 mm | 6.54±0.08 inch 6.89±0.08 inch 4.92±0.06 inch 4.92±0.06 inch |
---|
