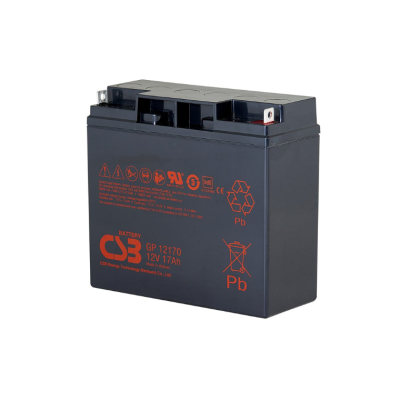

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 17Ah @20hr-rate to 1.75V per cell @25°C (77°F) Approx. 5.50 Kg (12.12 Ibs) 230A (5sec) Approx. 14.0 mΩ 532A 5.10A B1/B3/B1B terminal to accept M5 bolt 59 Kgf·cm / 51 lbf·in / 5.73 N·m ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 181.0±2.0 mm 76.2±2.0 mm 167.0±2.0 mm 167.0±2.0 mm | 7.13±0.08 inch 3.00±0.08 inch 6.57±0.08 inch 6.57±0.08 inch |
---|
