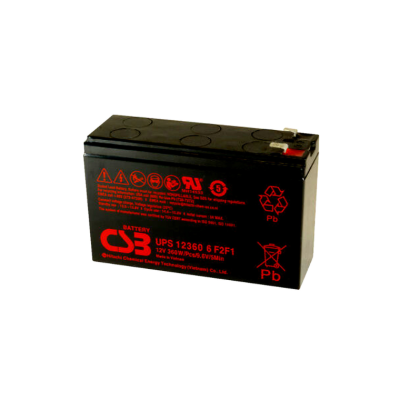

CSB UPS123606

Voltage : 12V Capacity : 360W Dimensions : Length (L) 150.9±2.0 mm Width (W) 51.0±1.0 mm

รายละเอียดสินค้า

Valve Regulated Lead Acid Battery

  • Maintenance-Free Sealed Acid Battery.
  • Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.

Specification

Nominal Voltage

Nominal Capacity

Weight

Maximum Discharge Current

Internal Resistance

Short Circuit Current

Maximum Charge Current

Terminal types

Terminal breaking Torque

Container Material

12V (6 cells per unit)

360W @5min-rate to 9.60V per PCS @25°C (77°F)

Approx. 1.97 Kg (4.34 Ibs)

100/130A (5sec)

Approx. 20.70 mΩ

325A

3.0A

F1/F2 terminal - Faston Tab 187/250



ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request

Dimensions

Length (L)

Width (W)

Container Height (h)

Overall Height (H)

150.9±2.0 mm

51.0±1.0 mm

94.3±1.0 mm

98.6±1.0 mm

5.94±0.08 inch

2.01±0.04 inch

3.71±0.04 inch

3.88±0.04 inch
