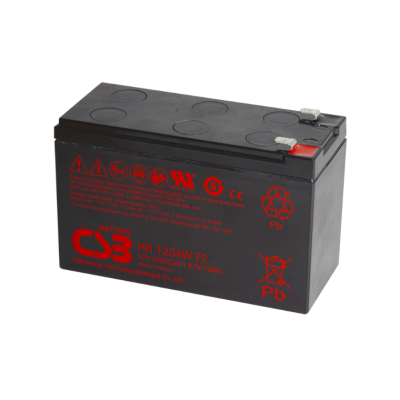

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 34W @15min-rate to 1.75V per cell @25°C (77°F) Approx. 2.50 Kg (5.51 Ibs) 130A (5sec) Approx. 19.0 mΩ 349A 3.4A F2 - Faston Tab250 ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 150.9±2.0 mm 64.8±1.0 mm 94.3±1.0 mm 98.6±1.0 mm | 5.94±0.08 inch 2.55±0.04 inch 3.71±0.04 inch 3.88±0.04 inch |
---|
