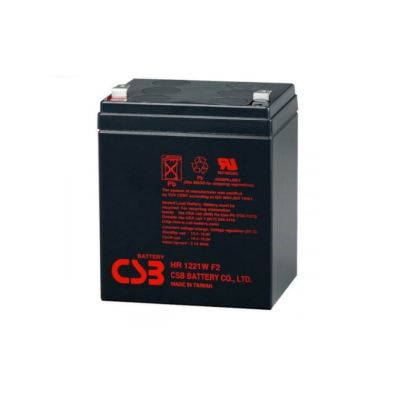

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 21W @15min-rate to 1.67V per cell @25°C (77°F) Approx. 1.80 Kg (3.97 Ibs) 60/90A (5sec) Approx. 23.0 mΩ 249A 2.1A F1/F2 Faston Tab187/250 ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 90.0±1.0 mm 70.0±1.0 mm 101.8±1.5 mm 106.1±1.5 mm | 3.54±0.04 inch 2.76±0.04 inch 4.01±0.06 inch 4.18±0.06 inch |
---|
