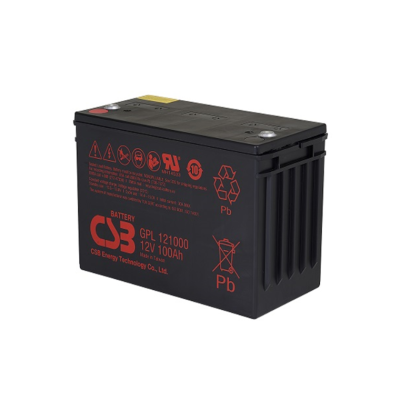

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 100Ah @20hr-rate to 1.75V per cell @25°C (77°F) Approx. 30.60 Kg (67.44 Ibs) 800A (5sec) Approx. 4.4 mΩ 2323A 30.00A l2 thread lead alloy terminal to accept M6 bolt 138.6 Kgf·cm / 120.3 lbf·in / 13.58 N·m PP (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 343.0±2.5 mm 170.0±2.0 mm 213.9±2.5 mm 216.9±2.5 mm | 13.50±0.10 inch 6.69±0.08 inch 8.42±0.10 inch 8.54±0.10 inch |
---|
