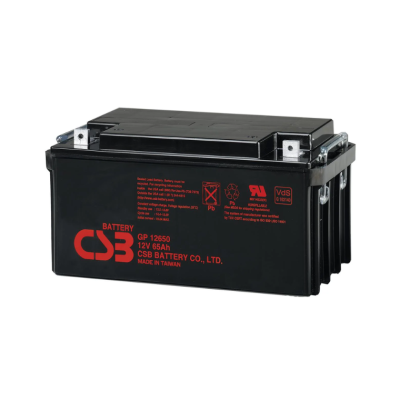

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 65Ah @20hr-rate to 1.75V per cell @25°C (77°F) Approx. 20.00 Kg (44.08 Ibs) 500A (5sec) Approx. 5.8 mΩ 1663A 19.50A B4 terminal to accept M6 bolt 138.6 Kgf·cm / 120.3 lbf·in / 13.58 N·m PP (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 349.4±2.5 mm 166.0±2.0 mm 174.9±2.0 mm 174.9±2.0 mm | 13.76±0.10 inch 6.54±0.08 inch 6.89±0.08 inch 6.89±0.08 inch |
---|
