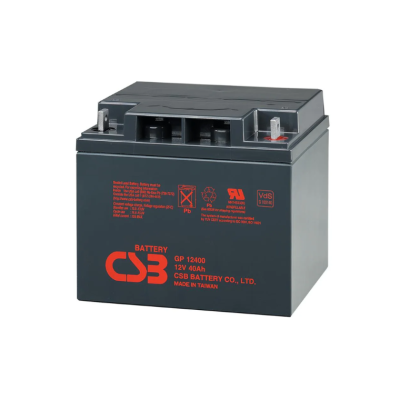

Valve Regulated Lead Acid Battery
Specification
Nominal Voltage Nominal Capacity Weight Maximum Discharge Current Internal Resistance Short Circuit Current Maximum Charge Current Terminal types Terminal breaking Torque Container Material | 12V (6 cells per unit) 40Ah @20hr-rate to 1.75V per cell @25°C (77°F) Approx. 12.63 Kg (27.84 Ibs) 400A (5sec) Approx. 8.5 mΩ 1012A 12.0A B8 terminal to accept M5 bolt 59 Kgf·cm / 51 lbf·in / 5.73 N·m ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
---|
Dimensions
Length (L) Width (W) Container Height (h) Overall Height (H) | 197.0±2.0 mm 165.0±2.0 mm 170.4±2.0 mm 170.4±2.0 mm | 7.76±0.08 inch 6.50±0.08 inch 6.71±0.08 inch 6.71±0.08 inch |
---|
