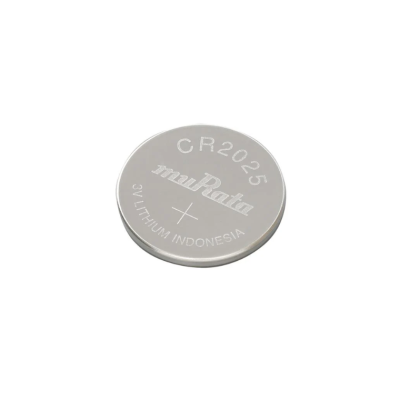

Murata CR2025
Voltage : 3.0 V (Coin Manganese Dioxide Lithium Battery)
Capacity : 160 mAh
Dimensions : Diameter 20.0 mm
Height 2.5 mm
รายละเอียดสินค้า
Limitation of Applications
- Aircraft equipment
- Aerospace equipment
- Undersea equipment
- Power plant control equipment
- Medical equipment
- Transportation equipment
- Traffic control equipment
- Disaster prevention/security equipment
- Industrial data-processing equipment
- Combustion/explosion control equipment
- Equipment with complexity and/or required reliability equivalent to the applications listed in the above.
Specification
| Model Name | CR2035 |
| Nominal Voltage | 3.0 V |
| Nominal Capacity | 160 mAH |
| Temperature | 23oC |
| Load | 15.0 kΩ |
| Cutoff Voltage | 2.0 V |
| Operating Temperature | -30 ～ 70oC |
| Recommended Storage Condition | |
| Temperature | 5～35oC |
| Humidity | 45～85%RH |
| Nominal Weight | 2.6 g |
| Main Battery Construction | |
| Anode | Lithium |
| Cathode | Manganese Dioxide |
| Electrolyte | Organic Solvent with Lithium Salt |
| Dimensions (mm)*** | |
| Diameter | 20.0 |
| Height | 2.5 |
