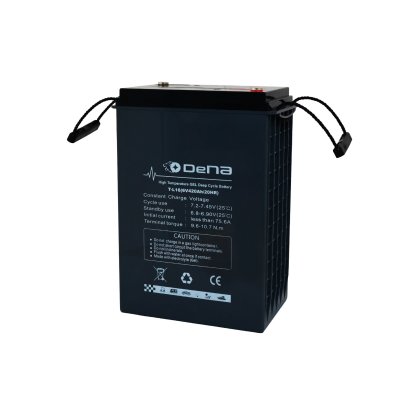

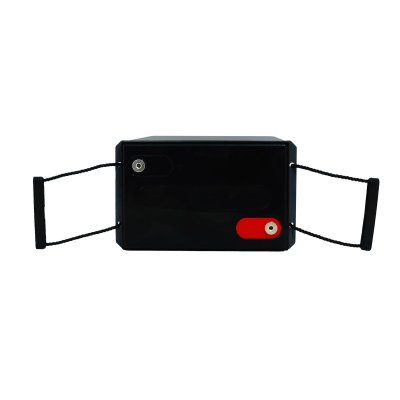

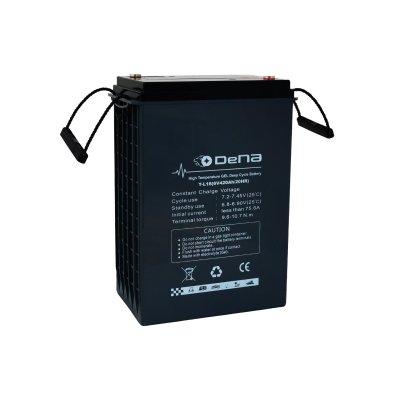

DeNA T-L16
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
Voltage (V) : 6
Capacity (Ah) : 420
Dimensions : 295 x 178 x 404 mm (L x W x H)
āđāļāļĢāļāļāđ: DeNA
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Charging Instructions
| Recommended Charge Current | Cyclic Application |
| - With Temperature Compensation | 93 A Max. |
| - Without Temperature Compensation | 35 - 47 A |
| Charge Voltage (12 Volts) | 7.2 - 7.45 V |
| Bulk Charge | 7.35 V |
| Absorption Charge | 7.35 V |
| Float Charge | 6.85 V |
| Temperature Compensate Factor | -4 mV/°C/Cell |
Operating Temperature
| Discharge : | -15°C~45°C |
| Charge : | -15°C~45°C |
| Storage : | -15°C~45°C |
DO NOT charge at temperature corrected voltages above 15 Volts (2.5 Volts/cell).
Use of voltage controlled charger is a requirement for warranty coverage.
For best cycle life, limit discharge to less than 50% of the batterys 20 hour capacity.
Applications
- EV Golf Cart, Utility Vehicles or NEV
- Scissor Lifts, Aerial Work Platforms
- Floor Sweeper, Scrubbers or Floor Cleaning Machine
- Material Handling
- Renewable Energy
General Features
- DOD 50% more than 1000 life cycles
- Long life and high stability under high temperature environment
- Design for usable at tropical countries
- Rechargeable and maintenance-free
- Gel VRLA (Valved Regulated Lead-Acid) battery
Dimensions and Weight
| Length(mm) | 295 |
| Width(mm) | 178 |
| Height(mm) | 404 |
| Total Height(mm) | 424 |
| Approx. Weight(Kg) | 57 |
