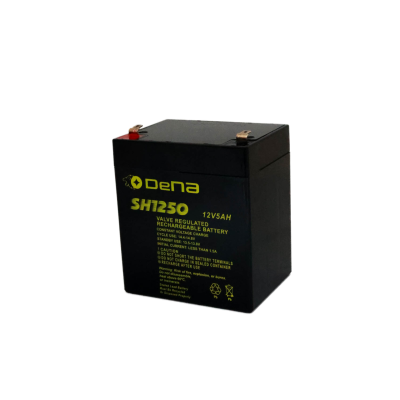

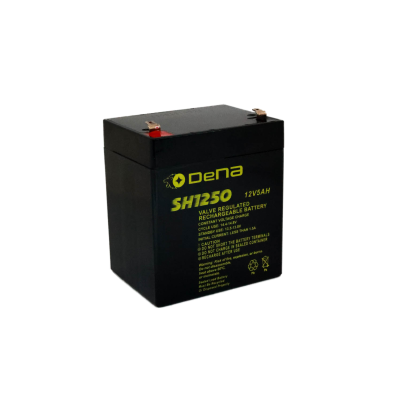

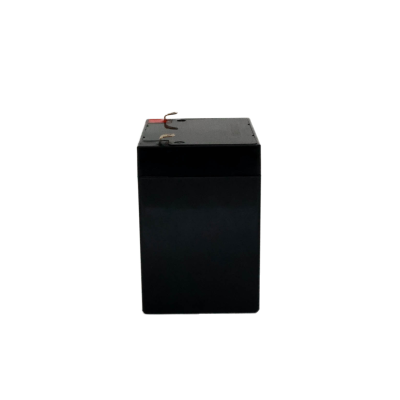

DeNA SH1250

Nominal Voltage

Number of cell

Design Floating Life @25°C

Nominal Capacity @25°C

     20 hour rate (0.25A, 10.8V)

     10 hour rate (0.48A, 10.8V)

     5 hour rate (0.89A, 10.5V)

     1 hour rate (3.30A, 9.6V)

Internal Resistance

Self-Discharge @25°C per month

Operating Temperature: Discharge

     Charge

     Storage

Maximum Discharge Current @25°C

Charge (Constant Voltage) @25°C

     Cycle use

          Maximum charging current

          Temperature compensation

     Standby use

          Temperature compensation

12V

6

5 years

5Ah

4.8Ah

4.45Ah

3.30Ah

35mOhms

3%

-15°C~45°C

-15°C~45°C

-15°C~45°C

30A (5s)

14.4-14.8 V

1.5 A

-30mV/°C

13.5 - 13.8V

-20mV/°C

Length(mm / inch)

Width(mm / inch)

Height(mm / inch)

Total Height(mm / inch)

Approx. Weight(Kg / Ibs)

90 / 3.54

70 / 2.76

101 / 3.98

107 / 4.22

1.6 / 3.53
