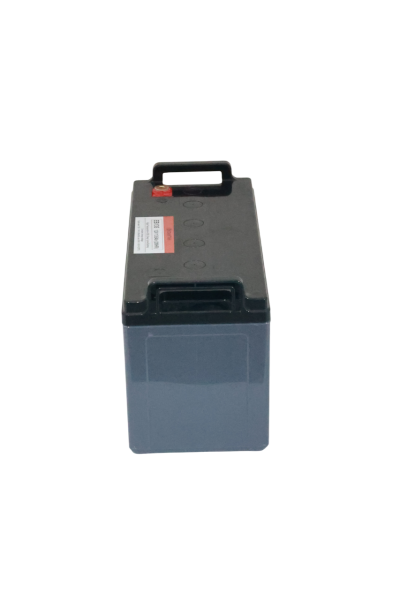

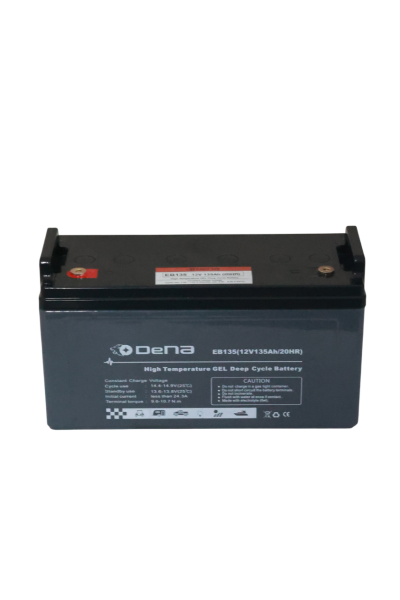

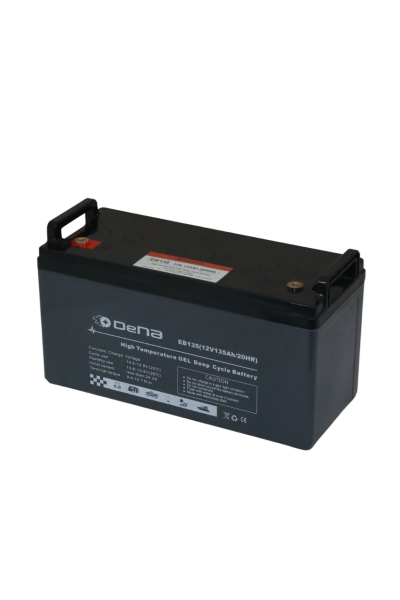

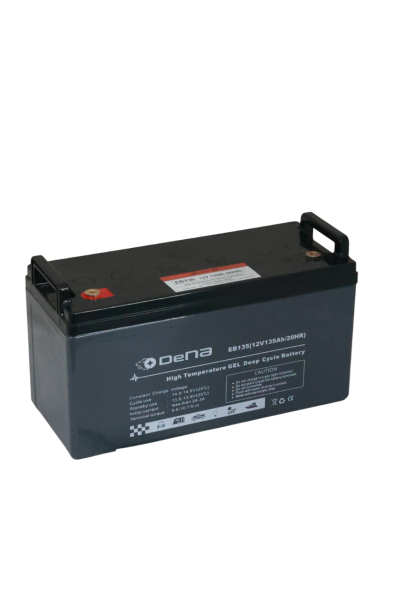

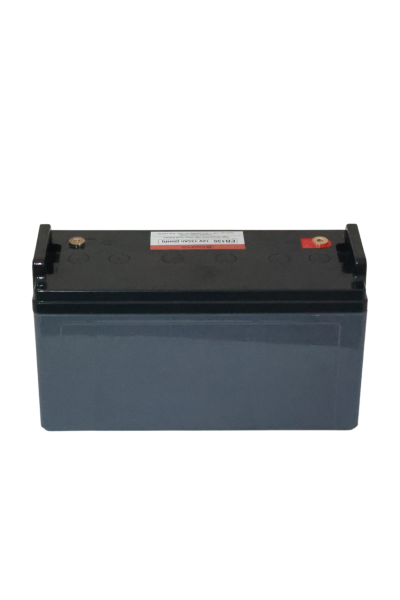

DeNA EB135
Voltage (V) : 12
Capacity (Ah) : 135
Dimensions : 407 x 174 x 210 mm (L x W x H)
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
āđāļāļāđāļāļāļĢāļĩāđāļāļ°āļāļąāđāļ§āļāļĢāļāđāļāļāđāļāļĨ
,
DeNA
āđāļāļĢāļāļāđ :DeNA
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Charging Instructions
| Recommended Charge Current | Cyclic Application |
| - With Temperature Compensation | 28.9 A Max. |
| - Without Temperature Compensation | 10.5 - 28.9 A |
| Charge Voltage (12 Volts) | 14.4 - 14.9 V |
| Bulk Charge | 14.7 V |
| Absorption Charge | 14.7 V |
| Float Charge | 13.8 V |
| Temperature Compensate Factor | -4 mV/°C/Cell |
Operating Temperature
| Discharge : | -25°C~60°C |
| Charge : | -25°C~60°C |
| Storage : | -25°C~60°C |
DO NOT charge at temperature corrected voltages above 15 Volts (2.5 Volts/cell).
Use of voltage controlled charger is a requirement for warranty coverage.
For best cycle life, limit discharge to less than 50% of the batterys 20 hour capacity.
Applications
- EV Golf Cart, Utility Vehicles or NEV
- Scissor Lifts, Aerial Work Platforms
- Floor Sweeper, Scrubbers or Floor Cleaning Machine
- Material Handling
- Renewable Energy
General Features
- DOD 50% more than 1000 life cycles
- Long life and high stability under high temperature environment
- Design for usable at tropical countries
- Rechargeable and maintenance-free
- Gel VRLA (Valved Regulated Lead-Acid) battery
Dimensions and Weight
| Length(mm) | 407 |
| Width(mm) | 174 |
| Height(mm) | 210 |
| Total Height(mm) | 233 |
| Approx. Weight(Kg) | 29.5 |
