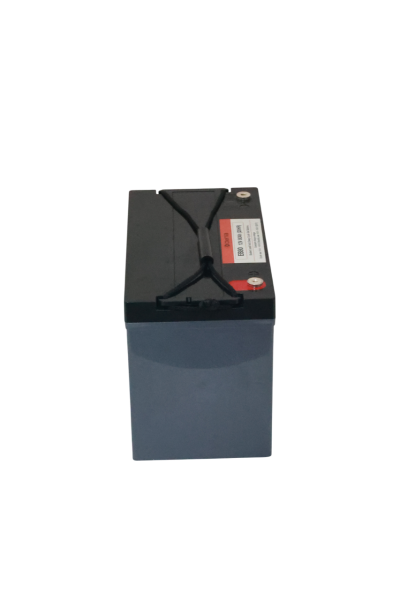

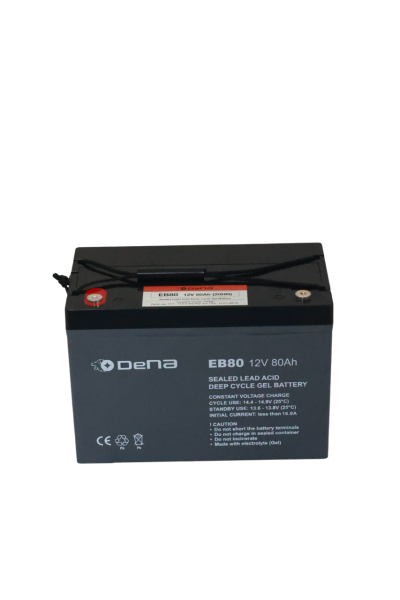

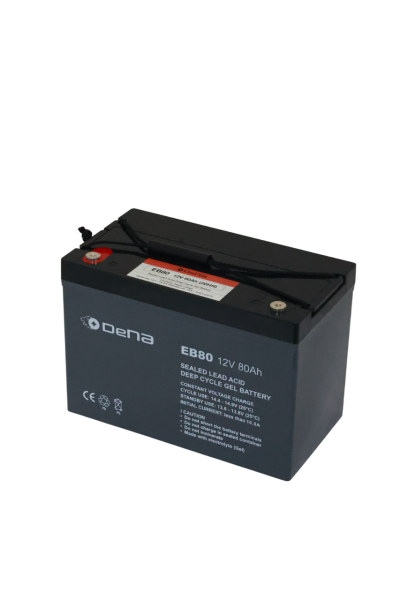

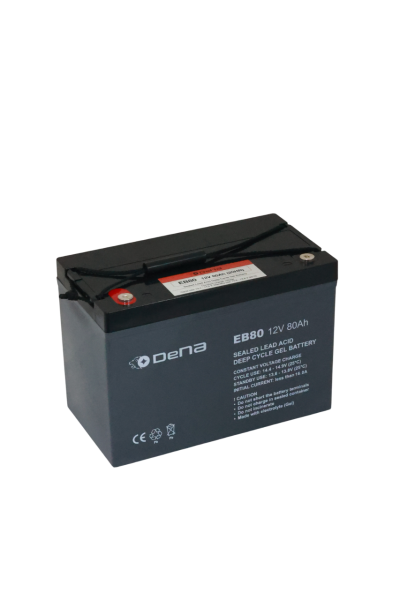

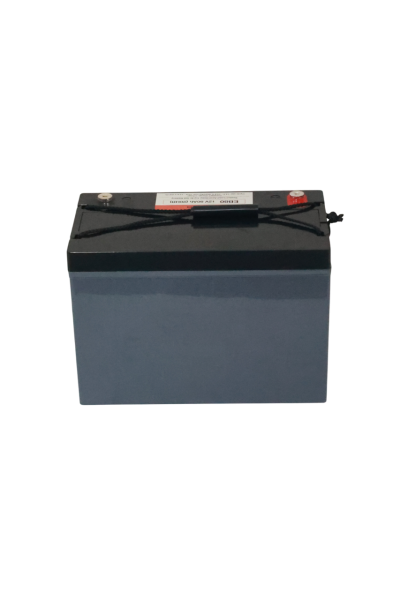

DeNA EB80
Voltage (V) : 12
Capacity (Ah) : 80
Dimensions : 307 x 169 x 211 mm (L x W x H)
รายละเอียดสินค้า
Charging Instructions
| Recommended Charge Current | Cyclic Application |
| - With Temperature Compensation | 22.5 A Max. |
| - Without Temperature Compensation | 8.0 - 22.5 A |
| Charge Voltage (12 Volts) | 14.4 - 14.9 V |
| Bulk Charge | 14.7 V |
| Absorption Charge | 14.7 V |
| Float Charge | 13.8 V |
| Temperature Compensate Factor | -4 mV/°C/Cell |
Operating Temperature
| Discharge : | -15°C~45°C |
| Charge : | -15°C~45°C |
| Storage : | -15°C~45°C |
DO NOT charge at temperature corrected voltages above 15 Volts (2.5 Volts/cell).
Use of voltage controlled charger is a requirement for warranty coverage.
For best cycle life, limit discharge to less than 50% of the batterys 20 hour capacity.
Applications
- EV Golf Cart, Utility Vehicles or NEV
- Scissor Lifts, Aerial Work Platforms
- Floor Sweeper, Scrubbers or Floor Cleaning Machine
- Material Handling
- Renewable Energy
General Features
- DOD 50% more than 1000 life cycles
- Long life and high stability under high temperature environment
- Design for usable at tropical countries
- Rechargeable and maintenance-free
- Gel VRLA (Valved Regulated Lead-Acid) battery
Dimensions and Weight
| Length(mm) | 307 |
| Width(mm) | 169 |
| Height(mm) | 211 |
| Total Height(mm) | 216 |
| Approx. Weight(Kg) | 30.5 |
