DeNA B216 (ป้ายทางออกฉุกเฉิน)
Dimension (L x W x H) : 310 x 35 x 230 mm
รายละเอียดสินค้า
DeNA B216
• Wall or ceiling mount installation

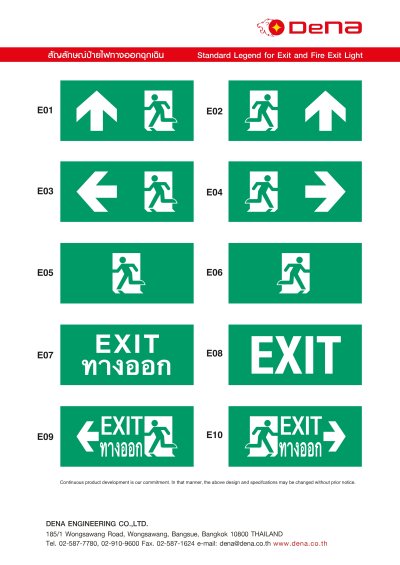

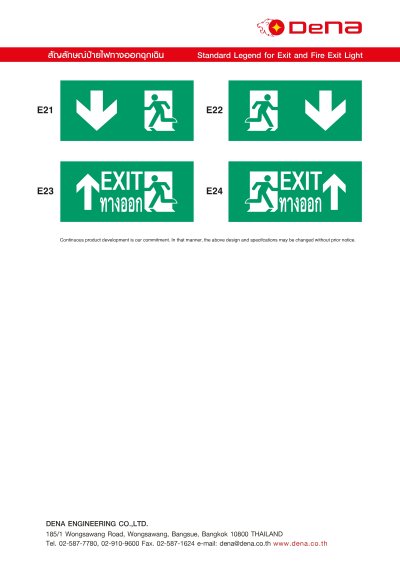

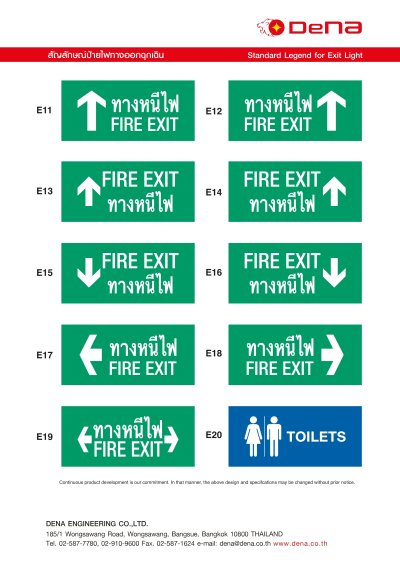

• Changrable exit pictogram legend (left/right/up/down)
• Single sided and double sided available
• 24 meters viewing distance
• Test button for lamp and battery testing
• SMD LEDs lamp
• Rechargeable Ni-Cd batteries pack
• 3 hours emergency duration
• 24 hours recharging time
• Overload and short circuit protection
• Over charge and over discharge protection
• Polycarbonate frame & PVC pictogram legend
• IP20 enclosure rating
• Comply with EN60598-2-22, EIT 2004-54 and TIS 1955-2551 standards
Specification
| Input | 220 Vac, 50 / 60 Hz |
| Lamp | 3 Watt SMD LEDs lamp |
| Luminous | 25 lumens |
| Battery | 3.6 Volt 900 mAh |
| Rechargeable Ni-Cd Batteries pack | |
| Battery life time | 3 years |
| Charging current | 30 - 70 mA |
| Discharging current | 140 - 180 mA |
| Duration | 3 hours |
| Protection | Over charge and discharge protection AC fuse for preventing AC short circuit and overload DC fuse for preventing charging short circuit and lamp |
| Test | Manual push button and Remote Test |
| Indicator | Operating status |
| Material | Polycarbonate frame & PVC legend |
| Dimension (L x W x H) | 310 x 35 x 230 mm |
| Weight | 1.7 kg |
| Enclosure rating | IP20 |
| Mouting | Wall or ceiling mounting |
| Accessory | Remote control |
| Standard | Comply with EN60598-2-22, EIT 2004-54 and TIS 1955-2551 standard |
| Warranty | 2 Years warranty for LED lamp and battery 5 Years warranty for circuit board |
