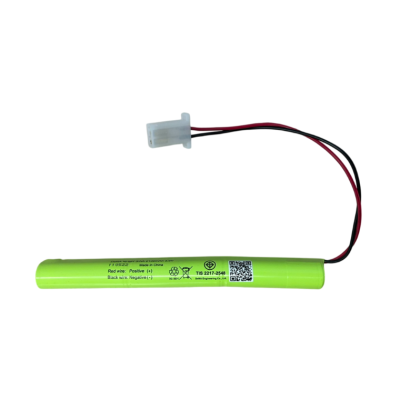

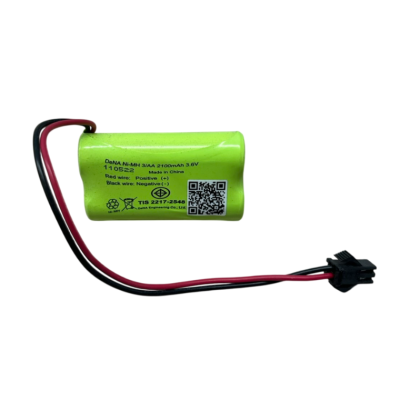

DeNA 3_AA
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
āđāļāļāđāļāļāļĢāļĩāđāļāļīāļāđāļāļīāļĨ-āđāļāļāđāļĄāļĩāļĒāļ
,
DeNA
āđāļāļĢāļāļāđ :DeNA
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Specification
| Model No. | 3/AA |
| Norminal Dimension (with sleeve) | Ã = 17.5 mm |
| H = 152.5 mm | |
| Applications | Recommended diacharge current |
| 210-2100mA | |
| Norminal Voltage | 3.6V |
| Capacity | |
| Minimum | 2100mAh |
| Typical | 2150mAh When Discharged at |
| 0.2C to 3.0V at 20oC | |
| Charging Condition | 210mA for 16hrs at 20oC |
| Fast Charge | up to 1050 mA |
| Charge termination control recommended control parameters | |
| -ÎV | 0-15mV |
| DT/dt | 0.8-1oC/min |
| TCO | 45-50oC |
| Timer | 110% nominal input |
| Permanent Charge Max. | 63 mA to 105 mA |
| Overcharge Current | 210 mA (up to 48 hrs) |
| Service Life | >500 cycles (IEC standard) |
| Continuous Overcharge | 210mA maximum current for 48 hrs |
| No conspicuous deformation and/or leakage | |
| Weight | 120 g(ref) |
| Internal Resistance | 120 mÎĐ (upon fully charged) |
| Max. Charging Voltage | 4.5 V at 210mA charging |
| Ambient Temperature Rage | |
| Standard Charging | 0oC to 45oC |
| Fast Charging | 10oC to 40oC |
| Discharging | -20oC to 60oC |
| Permanent charge | 0oC to 45oC |
| Storage (6 month) | -20oC to 35oC |
| Storage (1 month) | -20oC to 45oC |
| Storage (1 week) | -20oC to 55oC |
