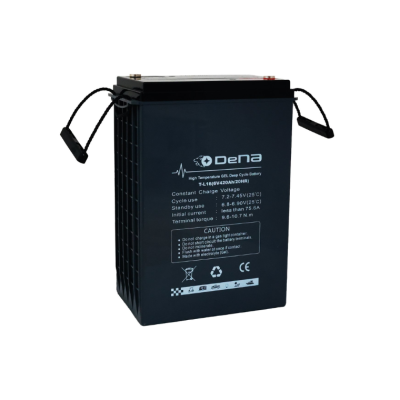

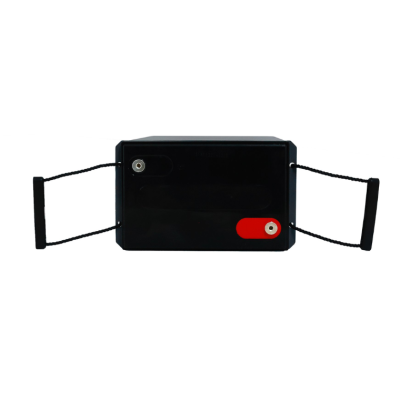

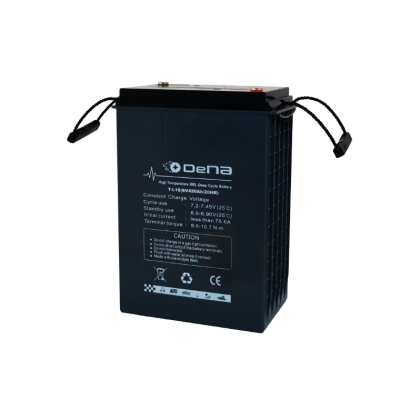

DeNA T-L16
Voltage (V) : 6
Capacity (Ah): 420
Dimensions : 295 x 178 x 404 mm (L x W x H)
รายละเอียดสินค้า
Charging Instructions
Recommended Charge Current
Charge Voltage (12 Volts) Bulk Charge Absorption Charge Float Charge Temperature Compensate Factor | Cyclic Application 93 A Max. 35 - 47 A 7.2 - 7.45 V 7.35 V 7.35 V 6.85 V -4 mV/°C/Cell |
|---|
Operating Temperature
Discharge: Charge: Storage: | -15°C~45°C -15°C~45°C -15°C~45°C |
|---|
DO NOT charge at temperature corrected voltages above 7.5 Volts (2.5 Volts/cell).
Use of voltage controlled charger is a requirement for warranty coverage.
For best cycle life, limit discharge to less than 50% of the batterys 20 hour capacity.
Applications
- EV Golf Cart, Utility Vehicles or NEV
- Scissor Lifts, Aerial Work Platforms
- Floor Sweeper, Scrubbers or Floor Cleaning Machine
- Material Handling
- Renewable Energy
General Features
- DOD 50% more than 1000 life cycles
- Long life and high stability under high temperature environment
- Design for usable at tropical countries
- Rechargeable and maintenance-free
- Gel VRLA (Valved Regulated Lead-Acid) battery
Dimensions and Weight
Length(mm) Width(mm) Height(mm) Total Height(mm) Approx. Weight(Kg) | 295 178 404 424 57 |
|---|
