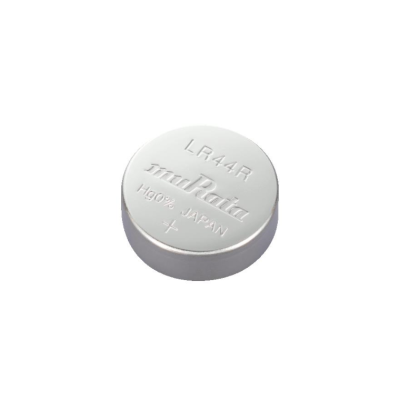

Murata LR44R
Voltage : 1.50 V (Alkaline Manganese Battery)
Capacity : 150 mAh
Dimensions : Diameter 11.60 mm
Height 5.40 mm
รายละเอียดสินค้า
Limitation of Applications
- Aircraft equipment
- Aerospace equipment
- Undersea equipment
- Power plant control equipment
- Medical equipment
- Transportation equipment
- Traffic control equipment
- Disaster prevention/security equipment
- Industrial data-processing equipment
- Combustion/explosion control equipment
- Equipment with complexity and/or required reliability equivalent to the applications listed in the above.
Specification
| Nominal Voltage | 1.50 V |
| Nominal Capacity (1.2V cutoff) | 150 mAH |
| Standard Discharge Load | |
| Nominal Voltage/Standard Load | 4.7 kΩ (0.3mA) |
| Maximum Discharge Current | |
| Keep higher than 1.2V, discharge at 23, DOD 0%, 0.1s | 120 mA |
| Weight | 2.0 g |
| Operating Temperature | -10 ～ +60oC |
| Dimensions (mm)* | |
| Diameter | 11.60 |
| Height | 5.40 |
