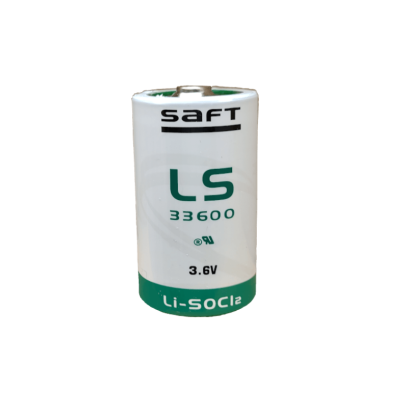

Saft LS33600

Electrical characteristics

Nominal capacity (under 5 mA, +20°C, 2.0 V cut-off)

Open circuit voltage (at +20°C)

Nominal voltage (under 0.7 mA, +20°C)

Nominal energy

Pulse capability

Maximum recommended continuous current

For battery sizing, consult Saft

Operating conditions

Operating temperature range

Storage temperature (max recommended)

Physical characteristics

Typical weight

Li metal content

Termination suffix

CN, CNR

2PE, 3 PF, 3 PF RP, 4 PF

CNA

FL

Other configurations upon request

Dimensions

     Diameter

     Height

17 Ah

3.67 V

3.6 V

61.2 Wh

Up to 400 mA

250 mA

-60°C / +85°C (-76°F / +185°F)

+30°C (+86°F)

90 g (3.2 oz)

approx. 4.5 g

Radial tabs

Radial pins

Axial leads

Flying leads

33.3 mm (1.31 in)

61.5 mm (2.42 in)
