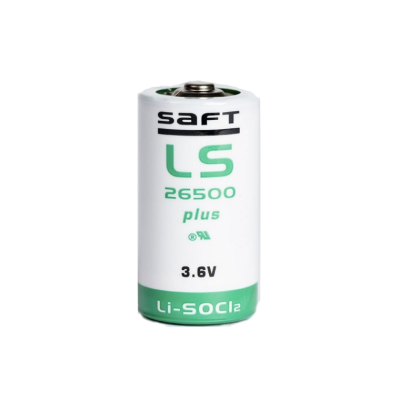

Saft LS26500plus

Electrical characteristics

Nominal capacity (under 4 mA, +20°C, 2.0 V cut-off)

Open circuit voltage (at +20°C)

Nominal voltage (under 0.5 mA, +20°C)

Nominal energy

Pulse capability

Maximum recommended continuous current

For battery sizing, consult Saft

Operating conditions

Operating temperature range

Storage temperature (max recommended)

Physical characteristics

Typical weight

Li metal content

Termination suffix

CN, CNR

2PE, 3 PF, 3 PF RP, 4 PF

CNA

GCJ

Other configurations upon request

Dimensions

     Diameter

     Height

8.5 Ah

3.67 V

3.6 V

30.6 Wh

Up to 300 mA

150 mA

-60°C / +85°C (-76°F / +185°F)

+30°C (+86°F)

47 g (1.65 oz)

approx. 2.2 g

Radial tabs

Radial pins

Axial leads

Connector

26.0 mm (1.02 in)

50.4 mm (1.97 in)
