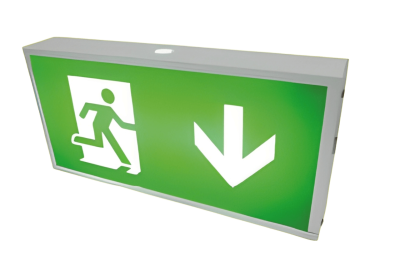

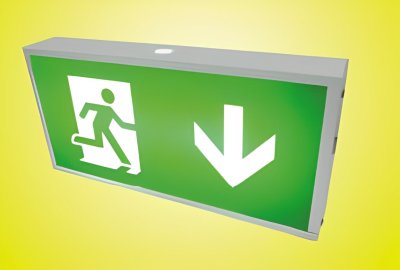

DeNA B310
• Wall or ceiling mount installation
• Changrable exit pictogram legend (left/right/up/down)
• Single sided and double sided available
• 24 meters viewing distance
• Test button for lamp and battery testing
• Super bright white LEDs lamp
• Rechargeable Ni-Cd batteries pack
• 3 hours emergency duration
• 24 hours recharging time
• Overload and short circuit protection
• Over charge and over discharge protection
• Metal housing & Polycarbonate pictogram legend
• IP20 enclosure rating
• Comply with EN60598-2-22, EIT 2004-54 and TIS 1955-2551 standards
Specification
Input Lamp Luminous Battery
Battery life time Charging current Discharging current Duration Protection
Test
Indicator Material
Dimension (L x W x H) Weight Enclosure rating Mouting
Accessory Standard
Warranty | 220 Vac, 50 / 60 Hz 10 Watt SMD LEDs lamp 130 lumens 4.8 Volt 1,500 mAh Rechargeable Ni-Cd Batteries pack 3 years 60 - 120 mA 180 - 250 mA 3 hours Over charge and discharge protection AC fuse for preventing AC short circuit and overload DC fuse for preventing charging short circuit and lamp Manual push button, Remote Test and Automatic schedule test (option) Operating status Epoxy power coating metal enclosure and polycarbonate (PC) legend 390 x 60 x 190 mm 1.97 kg IP20 Wall or ceiling mounting (single sided legend) Ceiling mounting (double sided legend) Remote control Comply with EN60598-2-22, EIT 2004-54 and TIS 1955-2551 standard 2 Years warranty for LED lamp and battery 5 Years warranty for circuit board |
