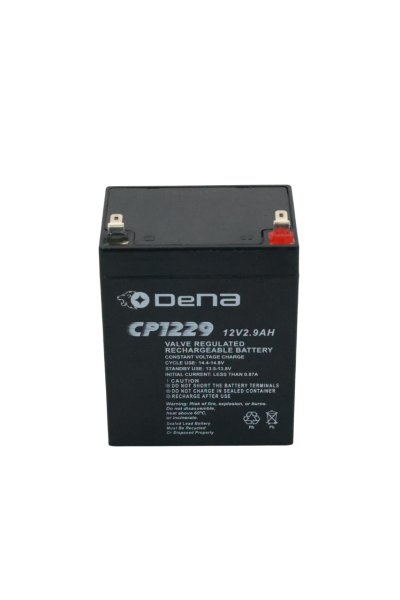

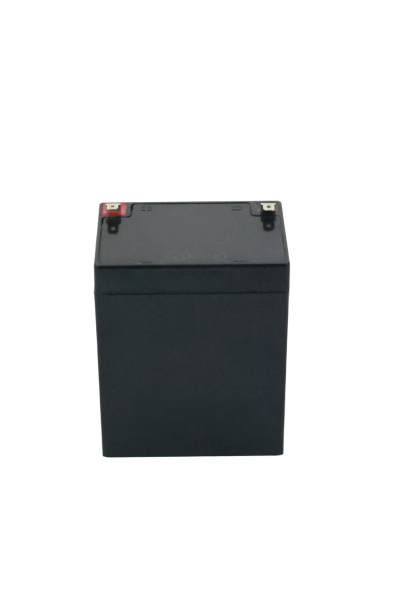

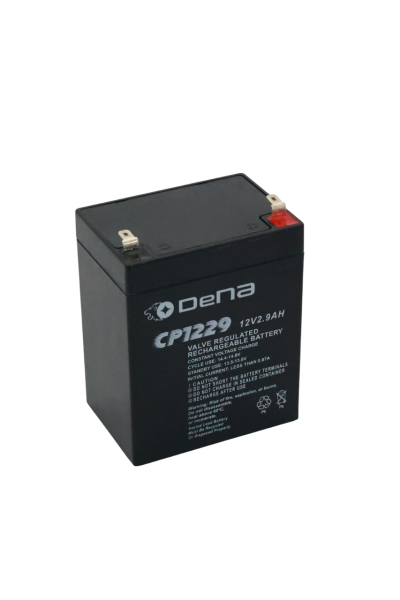

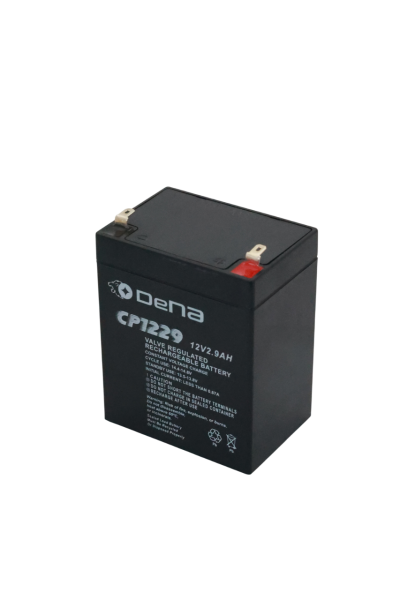

DeNA CP1229
Performance Characteristics
Nominal Voltage Number of cell Design Life Nominal Capacity 77°F (25°C) 20 hour rate (0.145A, 10.5V) 10 hour rate (0.26A, 10.5V) 5 hour rate (0.51A, 10.5V) 1 hour rate (2.2A, 9.6V) Internal Resistance Fully Charged battery 77°F (25°C) Self-Discharge 3% of capacity declined per month at 25°C (average) Operating Temperature Range Discharge Charge Storage Max. Discharge Current 77°F (25°C) Short Circuit Current Charge Methods: Constant Voltage Charge 77°F (25°C) Cycle use Maximum charging current Temperature compensation Standby use Temperature compensation | 12V 6 5 years
2.9Ah 2.6Ah 2.55Ah 2.2Ah 42mOhms -20~60°C -10~60°C -20~60°C 43.5A(5s) 145A 2.30-2.35V 1.16A -30mV/°C 2.23-2.27V -20mV/°C |
|---|
General Features
- Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
- Positive and negative plates in lead-calcium-tin alloy
- Stable quality & high reliability
- Sealed construction
- Maintenance-free operation
- Low pressure venting system
- Low self discharge
- High rate discharge
- Valve Regulated Lead Acid (VRLA) battery
- V0 Class Flame-Retardant ABS (UL94V-0) container and cover is optional
- Six months shelf life at 25°C
- Design life 8-10 years depend on temperature, float charging*
Dimensions and Weight
Length(mm / inch) Width(mm / inch) Height(mm / inch) Total Height(mm / inch) Approx. Weight(Kg / Ibs) | 80 / 3.14 56 / 2.20 99 / 3.89 104 / 4.09 1.06 / 2.33 |
|---|
