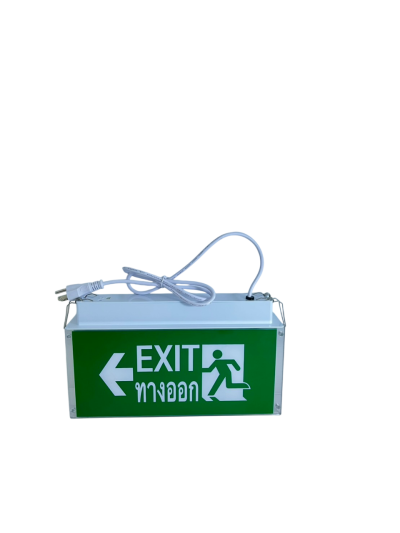

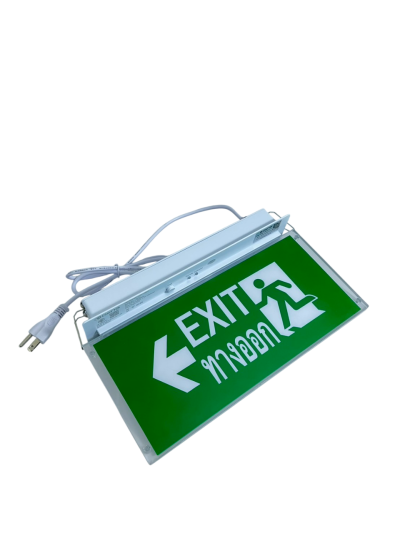

DeNA B219 (Emergency Lights / Emergency Exit Signs)
DeNA B219
Recessed ceiling mount installation
Changrable exit pictogram legend (left/right/up/down)
Single sided and double sided available
24 meters viewing distance
Test button for lamp and battery testing
SMD LEDs lamp
Rechargeable Ni-Cd batteries pack
3 hours emergency duration
24 hours recharging time
Overload and short circuit protection
Over charge and over discharge protection
Polycarbonate frame & PVC pictogram legend
IP20 enclosure rating
Comply with EN60598-2-22, EIT 2004-54 and TIS 1955-2551 standards
Specification
Input Lamp Luminous Battery
Battery life time Charging current Discharging current Duration Protection
Test
Indicator Material Dimension (L x W x H) Weight Enclosure rating Mouting Accessory Standard
Warranty | 220 Vac, 50 / 60 Hz 3 Watt SMD LEDs lamp 25 lumens 3.6 Volt 900 mAh Rechargeable Ni-Cd Batteries pack 3 years 30 - 70 mA 140 - 180 mA 3 hours Over charge and discharge protection AC fuse for preventing AC short circuit and overload DC fuse for preventing charging short circuit and lamp Manual push button, Remote Test and Automatic schedule test (option) Operating status Polycarbonate frame & PVC legend 335 x 75 x 197 mm 1.7 kg IP20 Recessed ceiling mounting Remote control Comply with EN60598-2-22, EIT 2004-54 and TIS 1955-2551 standard 2 Years warranty for LED lamp and battery 5 Years warranty for circuit board |
