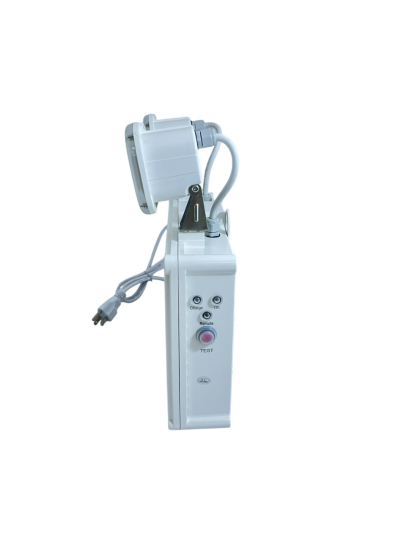

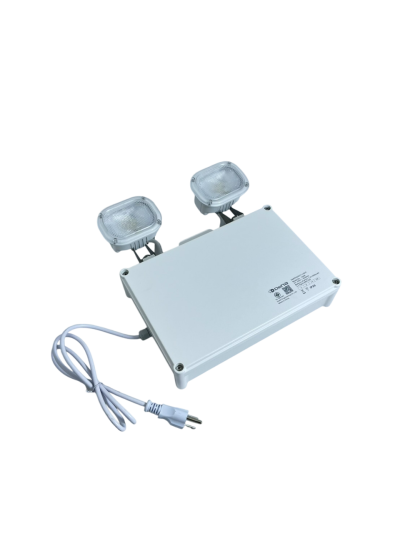

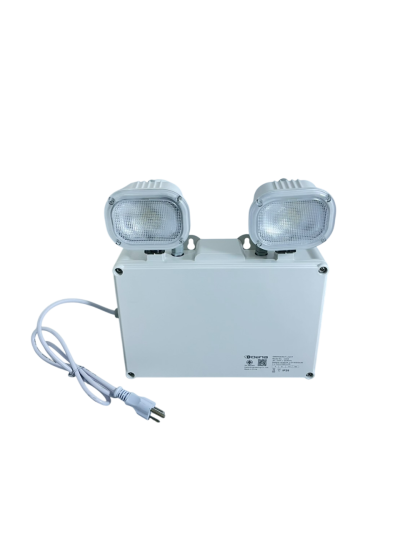

DeNA C808 (Emergency Lights)
DeNA C808
• Non-maintained operation mode
• On-Off switch to emergency operation
• Test button for lamp and battery testing
• SMD LEDs lamp
• Rechargeable Ni-Cd batteries pack
• 3 hours emergency duration
• 24 hours recharging time
• Charge and lamp healthy indicatiors
• Overload and short circuit protection
• Over charge and over discharge protection
• Polycarbonate housing and lamp heads
• IP20 enclosure rating
• Comply with EN60598-2-22 and TIS 1955-2551 standards
Specification
Input Lamp Luminous Battery
Battery life time Charging current Discharging current Duration Protection
Manual test
Indicator Material Dimension (L x W x H) Weight Enclosure rating Mouting Accessory Standard Warranty | 220 Vac, 50 / 60 Hz 2 x 7.5 Watt SMD LEDs lamp 350 - 400 lumens 9.6 Volt 2,200 mAh Rechargeable Ni-Cd Batteries pack 2 years 100 - 150 mA 800 - 1000 mA 3 hours Over charge and discharge protection AC fuse for preventing AC short circuit and overload DC fuse for preventing charging short circuit and lamp Push button Operating status Charging and operating status Polycarbonate enclosure and lamp head 280 x 95 x 300 mm 1.8 kg IP20 Wall mounted Remote control Comply with EN60598-2-22 and TIS 1955-2551 2 Years warranty for LED lamp and battery 5 Years warranty for circuit board |
