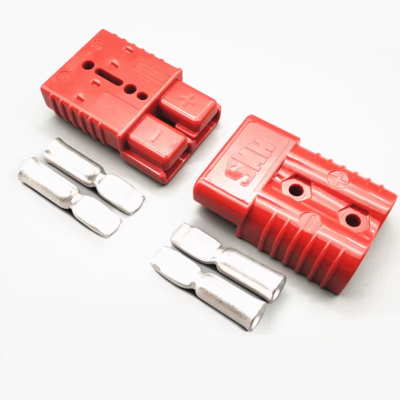

SY175A600V 2pin power connector

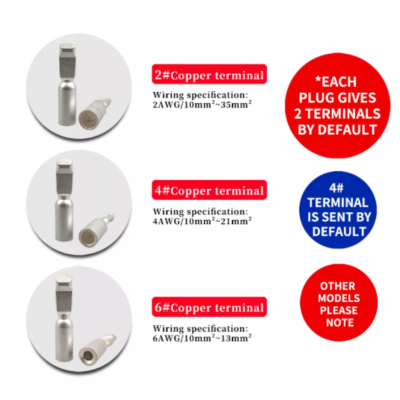

SY175A connector is widely used in motive power batteries and heavy industrial applications. It has blue/red/grey color optional, contacts options are 1/0AWG, 2AWG, 4AWG, different accessories are available.
รายละเอียดสินค้า
Features:
- Flat wiping contact technology
Minimize contact resistance under high current, wiping action cleans contact surface during connection/disconnection.

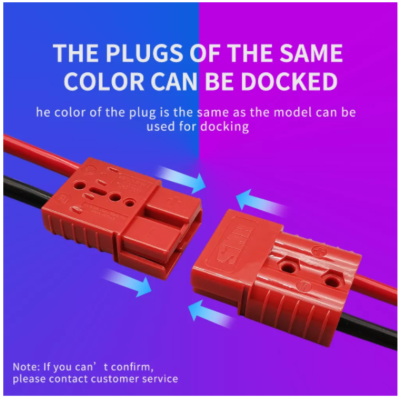

- Color foolproof design
Recommended industry standard voltage is confirmed by color, avoid mating of two different voltage plastic shells. Eliminate the possibility of misplugging the power supply and the socket.
- Interchangeable genderless design
Interchangeable genderless design makes assembly easier and reduces stock.
Applications:
This series of products are widely used in logistics communication, power-driven tools,
UPS systems electric vehicles, medical equipment AC/DC power etc.
Specifications:
| Rated Current (Amperes) | 175A |
| Rated | 600V |
| Contact Barrel Wire | #4 to 1/0 21.1 to 53.5 |
| Average contact resistance | 100 μΩ |
| Voltage proof | 2200V (DC) |
| Insulation resistance | 300MΩ |
| Without load | To 10,000 |
| (Contact/Disconnect cycles) | |
| With load | 75A |
| (Hot Plug 250 Cycles & 120V) | |
| Avg.Unmating Force | 25(MPC 2 Pole) 35(MPC 2 Pole) |
| Flammbility Rating of | UL94 V-0 |
| Operating temperature | -20o to 105o -4o to 221o |
| Contact material | Copper/Plating Silver |
